L-Band Upconverter-1

L-Band Downconverter-2

I. Function Introduction

a) Input intermediate frequency: 70MHz;

b) Input intermediate frequency bandwidth: 10MHz and 20MHz are selectable;

c) Output frequency range: 950MHz to 2150MHz;

d) It has the function of upward frequency conversion;

e) It has a gain adjustment function;

f) It has the function of selecting the input intermediate frequency bandwidth;

g) Structural form: 3U VPX 5HP board card.

L) Frequency converter model under the band: HRPDCM-2150

i) Input frequency range: 950MHz to 2150MHz;

j) Output intermediate frequency: 70MHz;

k) Output intermediate frequency bandwidth: 10MHz and 20MHz are selectable;

1) It has a down-conversion function;

m) It has a gain adjustment function;

n) It has the function of selecting the output intermediate frequency bandwidth;

Ii. Equipment Structure

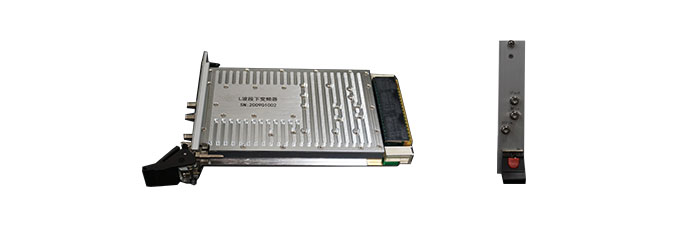

Equipment size: 3U VPX 5HP board card;

Net weight of the product: ≤8kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
