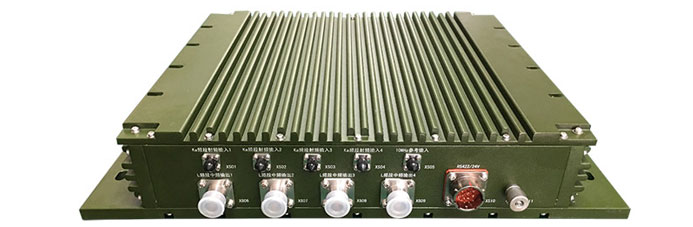

4-Ch Ka/L Down Converter Module-1

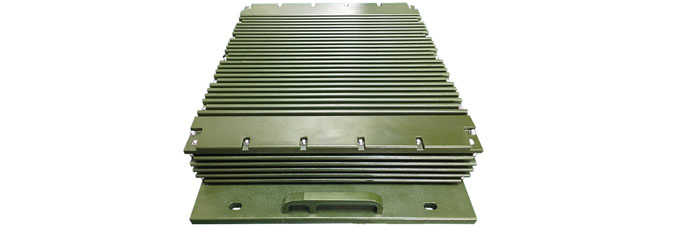

4-Ch Ka/L Down Converter Module-2

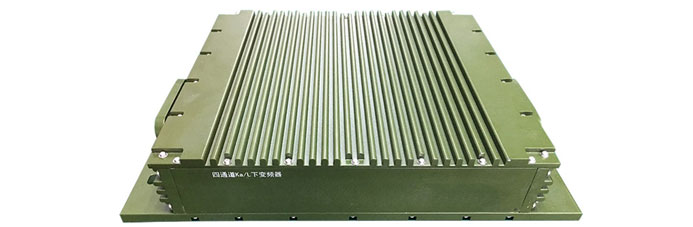

4-Ch Ka/L Down Converter Module-3

I. Function Introduction

a) Input frequency: 17.7GHz to 23GHz (2 channels); 25.25GHz to 27.5GHz (2 channels)

b) Output frequency: 950MHz to 2150MHz;

c) Input/Output channels: 4 in and 4 out;

d) It has an external frequency standard input and is capable of automatically detecting and switching between internal and external frequency standards.

e) It has both local control and remote control functions, enabling remote setting and querying of the status of "remote control" and "local control".

f) It is equipped with the function of setting and feeding back working parameters, and can set and feed back the working frequency and attenuation of the frequency converter.

Ii. Equipment Structure

Equipment size: Outdoor communication chassis;

Net weight of the product: ≤8kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
