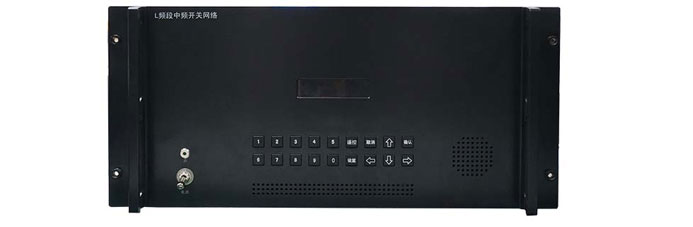

L-band IF SWN-1

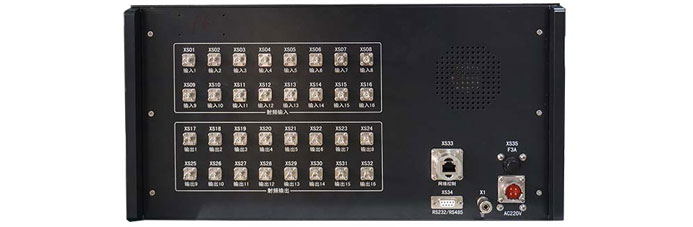

L-band IF SWN-2

I. Function Introduction

a) Operating frequency: 450MHz to 1950MHz;

b) It has the function of querying and reporting the working status of the switch matrix.

c) It has both local control and remote control functions, with local control taking priority (local control can modify the local/remote control status, but remote control cannot).

d) It has the function of power-off preservation/power-on recovery (selection of network access parameters and input/output channels).

e) It has a 16×16 full exchange (thermal fan-out) function for radio frequency signals;

f) It has the normal detection function for switch modules and branch modules;

g) It has the function of reporting power supply temperature, voltage and current.

h) It has the function of output power detection and reporting, with a detection signal range of -40 DBM to +0dBm.

i) It has an output turn-off function (discontinuous output);

Ii. Equipment Structure

Equipment size: Standard 19-inch 5U chassis;

Net weight of the product: ≤20kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
