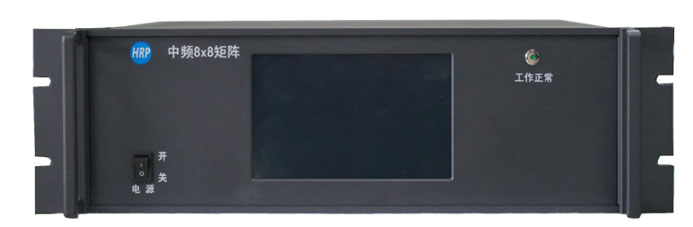

IF 8x8 Mtx-1

IF 8x8 Mtx-2

I. Function Introduction

a) Frequency range: 700-1700MHz;

b) Number of channels: 8×8

c) Amplitude balance: ≥10dB;

d) Gain: Continuously adjustable from 0 to 6dB;

e) Noise figure: ≤18dB;

f) Port standing wave: ≤1.5;

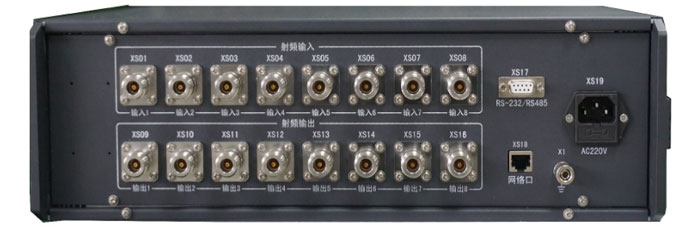

g) Interface requirements: Input signal: 8 channels N-50K; Output signal: 8 channels N-50K;

h) Control requirements: Local control: Touch screen; Remote control: RS232 DB-9F

i) LAN RJ45;

j) Power supply requirements: AC 220V/50Hz, ordinary plug;

k) Structural requirements: Standard 19-inch 3U chassis, black;

1) Environmental adaptability: Indoor equipment;

m) Operating temperature: +0° C to +40° C

Storage temperature: -55° C to +70° C;

o) Humidity: 30% to 70%.

Ii. Equipment Structure

Equipment size: Standard 19-inch 3U chassis;

Net weight of the product: ≤18kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
