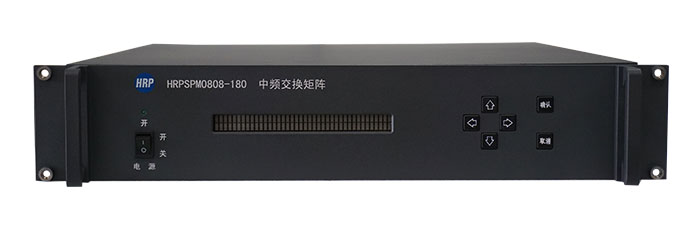

IF SW Matrix-1

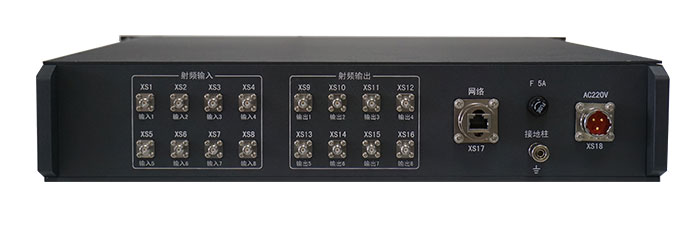

IF SW Matrix-2

I. Function Introduction

a) Operating frequency: 50MHz to 180MHz;

b) It has an 8×8 full switching function for intermediate frequency signals;

c) It has the function of monitoring the power level of input and output signals and the input saturation alarm function.

d) It has the function of power-off preservation/power-on recovery (selection of network access parameters and input/output channels).

e) It has local VFD or LED display (working status, communication mode, channel selection, power, device model/serial number, etc.) and screen saver function;

f) It has the function of local setting of network access parameters (serial port, network port, IP address, etc.);

g) It has local control and remote query and control functions for working parameters (local/remote control, channel selection, etc.).

h) It has the function of querying the unique identification of the equipment model/serial number or the overall specified equipment.

i) Provide user-defined monitoring and control terminals, and offer operation and maintenance operation control data interfaces in the specified format;

Ii. Equipment Structure

Equipment size: Standard 19-inch 2U chassis;

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
