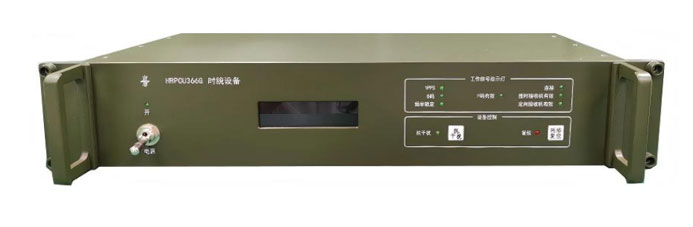

Timing Sys. Equip. - Front Panel

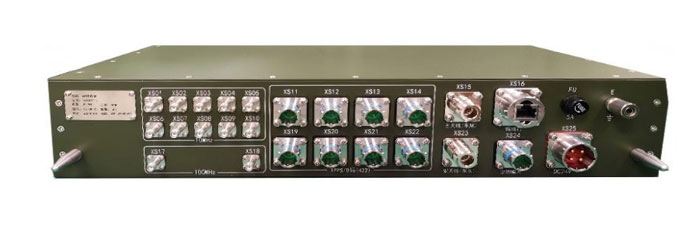

Timing Sys. Equip. - Rear Panel

I. Function Introduction

a) It has the function of receiving Beidou time synchronization.

b) It has the function of network time synchronization;

c) It has positioning function;

d) It has a directional function;

e) It has a unified high-precision frequency source function;

f) It has the function of second pulse output;

g) It has B-code (DC) output function;

h) Dual time code source automatic backup. When all time code source signals are lost, it automatically switches to the timekeeping mode to ensure continuous operation of the equipment.

i) It has the functions of setting the working mode, displaying time and working status;

j) Reserve an interface for adding military codes and support Beidou military code timing. a) It has the function of receiving external 10MHz reference signals and B-code and second pulse signals.

h) It has the function of outputting 10MHz reference signals, B-code signals and second pulse signals through external channels.

i) It has the function of signal detection;

j) It can report the working status of this machine and self-check results and other information through the network port.

Ii. Equipment Structure

Equipment size: Standard 19-inch 2U chassis;

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
