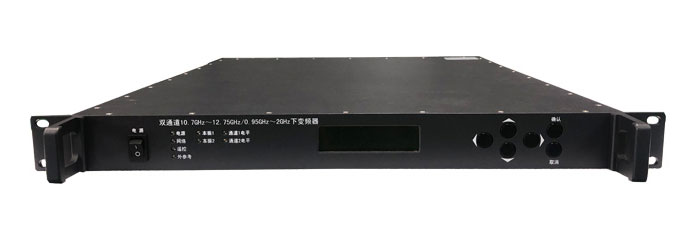

2-CH 10.7-12.75/0.95-2 GHz D/C-1

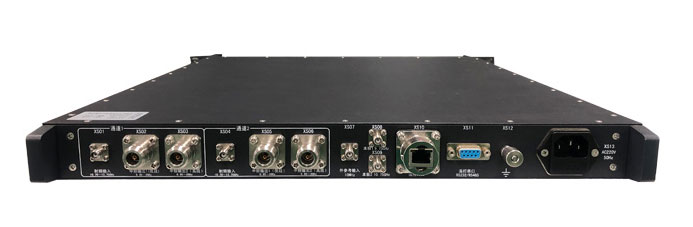

2-CH 10.7-12.75/0.95-2 GHz D/C-2

I. Function Introduction

a) Input frequency: 10.7GHz to 12.75GHz;

b) Output frequency:

Output 1:0.95ghz to 2.00GHz(input frequency: 10.7GHz to 11.75GHz, positive spectrum)

Output 2:0.95ghz to 2.00GHz(input frequency: 11.7GHz to 12.75GHz, positive spectrum)

c) Number of input channels: 2;

d) Output channels: 4 channels;

e) It has the function of converting Ku band signals into two segments to L band and outputting them simultaneously;

f) It has the functions of input power detection and input saturation alarm;

g) It has the function of power-off preservation/power-on recovery (network access parameters, gain);

h) It has the functions of internal and external 10MHz reference sources and display on the front panel indicator light and screen.

i) It has the function of local control and remote control switching between internal and external 10MHz reference sources.

j) It has the function of displaying the local vibration status warning light on the front panel.

k) It has the function of displaying the input power saturation alarm indicator light on the front panel.

1) It features OLED display (including working status, communication mode, gain, input power, MAC address, device model/serial number, firmware version, local oscillator information and input-output frequency conversion relationship, etc.) and active screen saver function;

m) It has the function of setting network access parameters (serial port, network port, IP address, subnet mask, gateway, port, etc.) panel.

n) It has the function of setting working parameters (remote control/local, gain) through the panel.

o) It has a remote control query response function with a unique identification of the device model number;

p) It has the function of full-state remote control query response for the equipment;

q) It has the function of immediately triggering full-state active reporting when the working parameters change and the key working states change (input signal saturation state, local oscillator alarm state, external reference state).

r) It has the function of local oscillator output at all levels;

s) It has the function of remote control of working parameters (remote control/local, gain).

t) Have the ability to upgrade the device firmware without starting the box;

Ii. Equipment Structure

(1) Equipment size: 19-inch 1U standard rack-mounted chassis (customizable according to system structure requirements);

(2) Net weight of the product: ≤8kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
