I. Function Introduction

a) Input signal frequency: 720MHz, 70MHz;

b) Input level: -50 DBM to 0dBm;

c) Output frequency:

Ku:13.75GHz to 14.5GHz;

Ka:27.5GHz to 30GHz;

Q/V:47.2GHz to 52.4GHz;

d) Signal bandwidth:

40MHz (corresponding to 70MHz input);

100 MHZ, 200MHz, 500MHz, 1GHz (corresponding to 720MHz input);

e) Monitoring method: RS485 bus;

f) Power supply: +24V/3A (Each channel has independent on-off control);

Ii. Equipment Structure

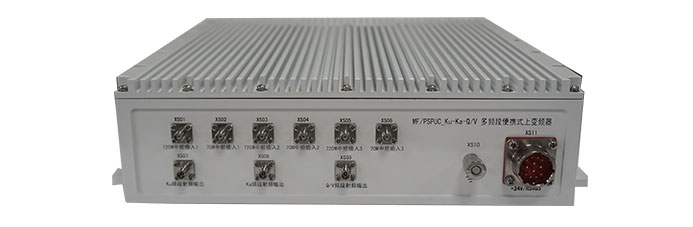

(1) Equipment dimensions: Outdoor communication chassis (320mm×280mm×80mm);

(2) Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate
