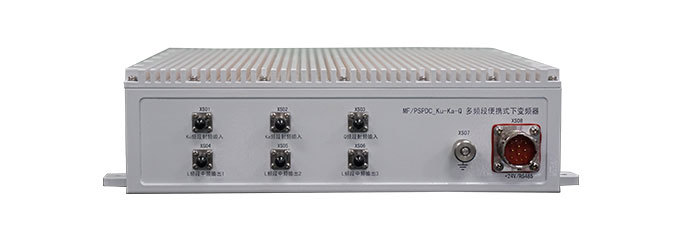

Portable Multiband D/C-1

Portable Multiband D/C-2

I. Function Introduction

a) Input signal frequency range

Ku: 10.7GHz to 12.7GHz;

Ka: 17.8GHz to 21.2GHz;

Q: 37.5GHz to 42.5GHz;

b) Input channels: 3 channels;

c) Number of output channels: 3 (1 channel corresponds to Ku input, 1 channel corresponds to Ka input, 1 channel corresponds to Q input, and the 3 channels are independent of each other);

d) Output intermediate frequency signal frequency: 2160MHz;

e) Signal bandwidth: 40MHz, 100 MHZ, 200MHz, 500MHz, 1GHz;

f) Structure: Outdoor communication chassis.

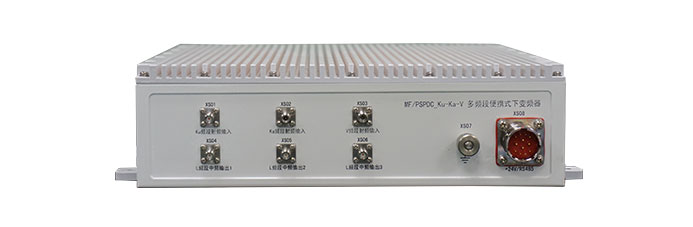

Model of multi-band portable down-converter: MF/PSPDC_Ku-Ka-V

a) Input signal frequency range

Ku: 12.75GHz to 14.5GHz;

Ka: 27.5GHz to 30GHz;

V: 47.2GHz to 52.4GHz;

b) Input channels: 3 channels;

c) Number of output channels: 3 (1 channel corresponds to Ku input, 1 channel corresponds to Ka input, 1 channel corresponds to V input, and the 3 channels are independent of each other);

d) Output intermediate frequency signal frequency: 2160MHz;

e) Signal bandwidth: 40MHz, 100 MHZ, 200MHz, 500MHz, 1GHz;

Ii. Equipment Structure

Equipment size: Outdoor communication chassis;

Net weight of the product: ≤8kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
