I. Function Introduction

a) Input frequency: 18.2GHz to 21.2GHz, step 10KHz;

b) Output frequency: 1.2GHz;

c) Receive Ka-band RF signals, and after down-conversion, output two L-band signals (including one for testing);

d) One oscillator signal and two oscillator signals have test output ports;

e) Support this sub-control function;

f) The sub-control has the following functions: It has the function of detecting the voltage and corresponding current of each channel of the chassis power module. It has the functions of local oscillator lock indication and reference input, as well as local oscillator output amplitude detection. It has the functions of indicating the status of the frequency converter (detecting current) and detecting the amplitude of RF input and intermediate frequency output. It has the function of detecting the internal temperature of the chassis.

g) It is equipped with power-off protection function, and the original configuration parameters can be retained after power failure.

Ii. Equipment Structure

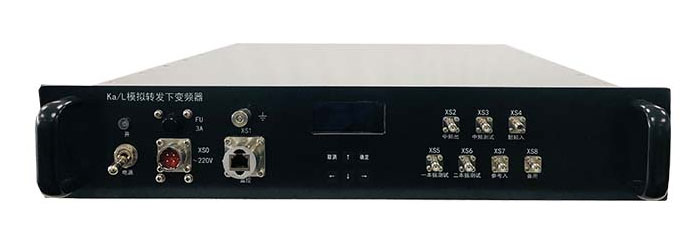

Equipment size: Standard 19-inch 2U chassis;

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
