I. Function Introduction

a) Up-conversion section: S RF input frequency: 2070MHz; Output RF frequency: 29GHz to 31GHz, frequency step: 10KHz;

b) Small loop down-conversion section: Input RF signal frequency: 29GHz to 31GHz; Output S RF signal frequency: 2070MHz;

c) Up-convert the 2070MHz RF signal to the Ka band;

d) Down-convert the Ka band signal to 2070MHz;

e) The AGC voltage is sent out by the frequency conversion module under the small loop.

f) Generate and transmit primary and secondary local oscillator signals, which are used as the local oscillator of the up-converter.

g) There are 3 output channels each for transmitting one local oscillator and two local oscillator signals, among which 1 output channel each is externally used for automatic testing.

h) The chassis can report the working voltage and current status of each channel of the power module.

i) The chassis is equipped with a temperature detection function;

j) Complete the status monitoring and equipment control functions of this chassis, and communicate with the system monitoring console through the network port.

Ii. Equipment Structure

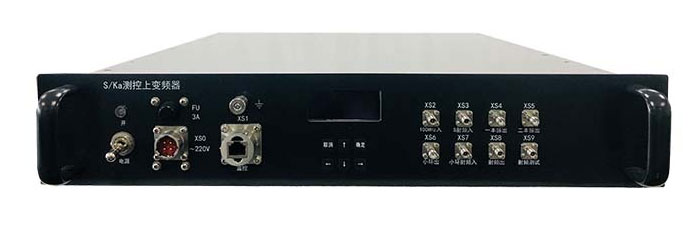

Equipment size: Standard 19-inch 2U chassis;

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
