I. Function Introduction

a) Input frequency: Center frequency: 1.2GHz, signal bandwidth: ≤1200MHz;

b) Output frequency: 18.2GHz to 21.2GHz, step 10kHz;

c) Receive L-band RF signals, and after up-conversion, output Ka-band signals;

d) It has the function of detecting power supply voltage and current;

e) The local oscillator output signal has a coupling test port;

f) It has a remote status reporting function (via network port);

g) The local oscillator is equipped with power-on and power-off indication, lock indication, and power level indication functions.

h) The frequency converter has the function of power-on and power-off.

i) It has the function of indicating the reference source power level;

j) Spectrum not inverted;

Ii. Equipment Structure

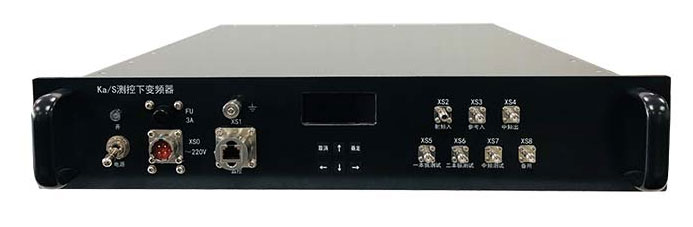

Equipment size: Standard 19-inch 2U chassis;

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
