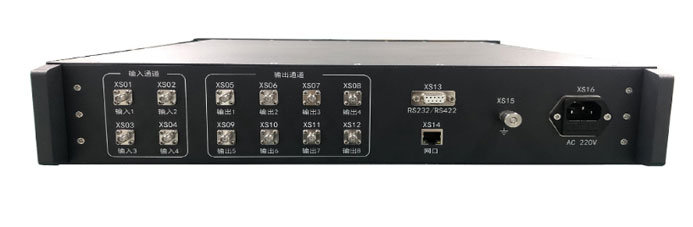

RF SW Matrix -1

RF SW Matrix -2

I. Function Introduction

a) It has the 4X8 full switching function for radio frequency signals;

b) It has the function of power-off preservation/power-on recovery (selection of network access parameters and input/output channels).

c) It has local VFD or LED display (working status, communication mode, channel selection, device model/serial number, etc.) and active screen saver function;

d) It has the function of local setting of network access parameters (serial port, network port, IP address, etc.);

e) It has the function of full-state query and response;

f) Have the ability to upgrade the device firmware without starting the box;

g) Scale: Full exchange of 4 inputs *8 outputs;

h) Operating frequency :0.95GHz to 3GHz;

i) Input/output standing wave ratio :≤1.5:1;

j) Isolation between output ports: ≥60dB(for different inputs); ≥28dB(same input).

k) Gain :0-6dB, 1dB step;

1) Input P-1dB:≥+5dBm;

m) In-band flatness :≤±1dB/ full frequency band;

n) Control interface: It has the capability of remote control via network port.

o) The front panel has parameter setting keys and status display.

Ii. Equipment Structure

Equipment size: Standard 19-inch 2U chassis;

Net weight of the product: ≤15kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
