I. Function Introduction

a) Operating frequency: 18.2GHz to 21.2GHz;

b) It has the function of querying and reporting the working status of the switch matrix.

c) It has both local control and remote control functions, with local control taking priority (local control can modify the local/remote control status, but remote control cannot).

d) It has the function of power-off preservation/power-on recovery (selection of network access parameters and input/output channels).

e) It has a 4×12 full exchange (thermal fan out) function for radio frequency signals;

f) It has an output signal detection function, with a detection signal range of -40 DBM to +0dBm.

g) It has the normal detection function for switch modules and branch modules;

h) It has the function of reporting power supply temperature, voltage and current.

i) It has an output turn-off function (the output is not connected);

Ii. Equipment Structure

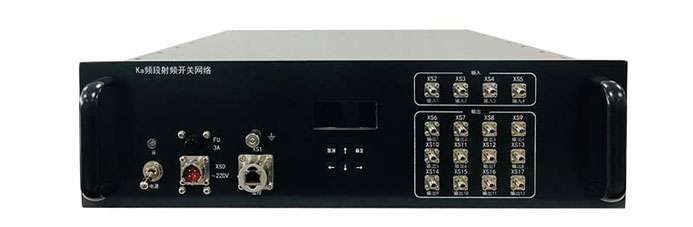

Equipment size: Standard 19-inch 3U chassis;

Net weight of the product: ≤18kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
