Portable Sig Gen-1

Portable Sig Gen-2

I. Function Introduction

a) Operating frequency: 1GHz to 9GHz;

b) Frequency step: 100kHz;

c) Output power range: -40 DBM to +10dBm;

d) Power step: 1dB adjustable;

e) Local control: LCD screen + buttons;

f) Built-in battery working time: ≥4 hours;

g) RF output interface: SMA-K(50Ω);

h) Charging interface: DC-002;

i) Dimensions: ≤160mm×105mm×40mm;

j) Weight: ≤1kg.

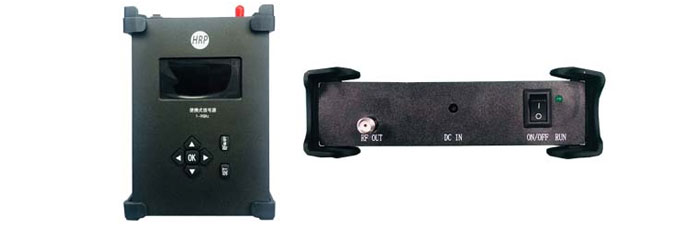

Ii. Equipment Structure

Equipment size: Customized cavity module; ≤160mm×105mm×40mm;

Net weight of the product: ≤1kg

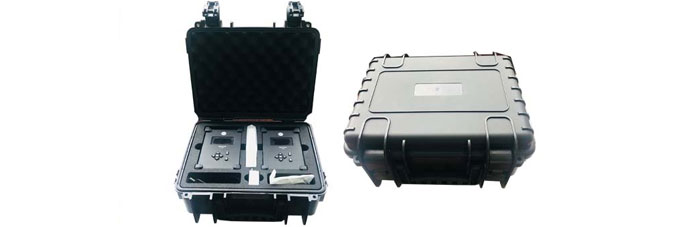

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
