4-to-1 Signal Selector-1

4-to-1 Signal Selector-2

I. Function Introduction

a) Operating frequency: 0.05GHz to 2.15GHz;

b) It has the function of 4 RF signal inputs and 1 output option.

c) It has the function of power failure protection/power-on recovery (selection of network access parameters and input/output channels);

d) It has local VFD display (working status, communication mode, channel selection, power, device model/serial number, etc.) and screen saver function;

e) It has the function of local setting of network access parameters (serial port, network port, IP address, etc.);

f) It has local control functions for working parameters (communication mode, local/remote control, channel selection, etc.);

g) It has the function of querying and responding to the unique identification of the equipment model/serial number or the overall specified equipment.

h) It has the function of full-state query and response;

i) It has the function of remote control for working parameters (remote control/local, channel selection).

j) Control mode:

   Local monitoring: VFD display screen + buttons;

   Remote control: RS232/RS485, RJ45;

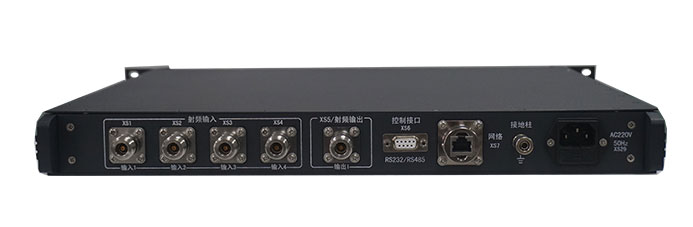

Ii. Equipment Structure

Equipment size: Standard 19-inch 1U chassis;

Net weight of the product: ≤8kg

Iii. Delivery of Materials

Factory inspection report

Product Qualification Certificate

If you would like to know more detailed information about this equipment, please feel free to contact our sales staff.
